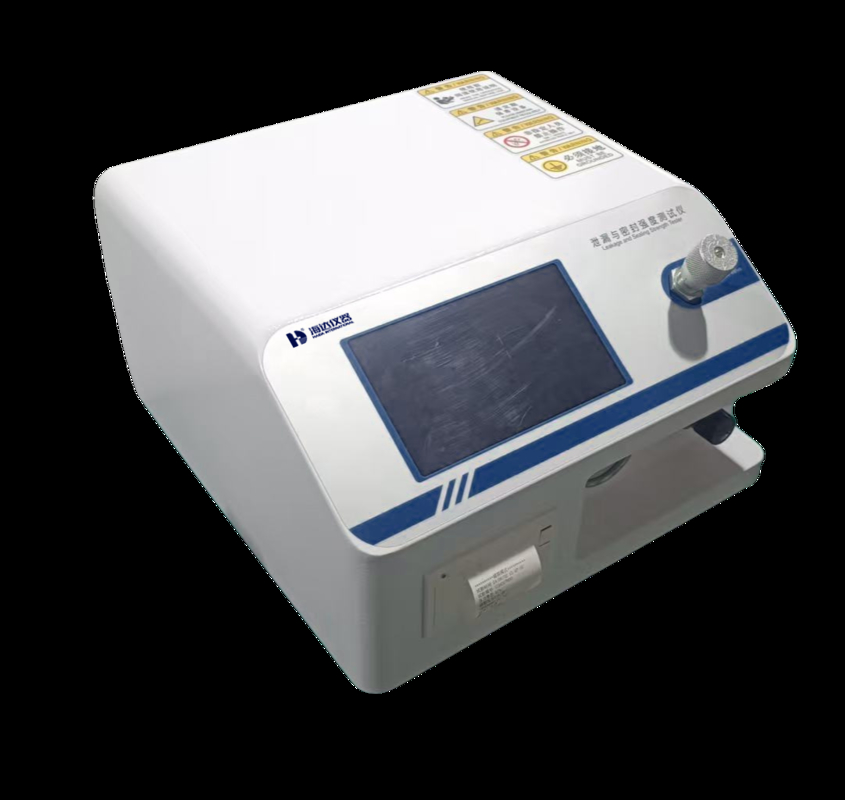

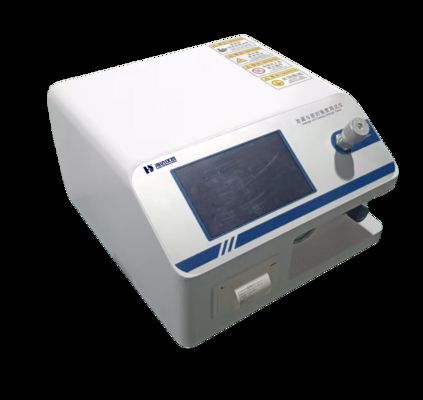

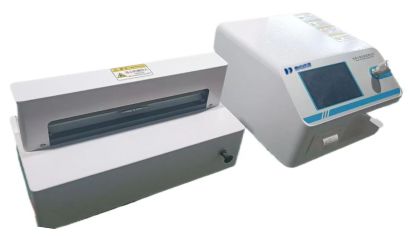

EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER

EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER
EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER

বড় ইমেজ :  EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER

পণ্যের বিবরণ:
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: Haida
সাক্ষ্যদান: CE,,ISO
মডেল নম্বার: 5084-এইচডি
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1
মূল্য: আলোচনাযোগ্য
প্যাকেজিং বিবরণ: প্রতিটি সেট রজন ফাইবার এবং পিপি ফিল্ম দিয়ে সুরক্ষিত, তারপরে অপারেশন ম্যানের সাথে শক্তিশালী কাঠের কে
ডেলিভারি সময়: অর্ডার নিশ্চিত হওয়ার 20 দিন পরে
পরিশোধের শর্ত: এল/সি, টি/টি, ডি/এ, ডি/পি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম
যোগানের ক্ষমতা: প্রতি মাসে 300 সেট

EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER

বিবরণ
ইনজেকশন চাপ: 1 টন চিত্রের আকার: 640*480, 1024*768, 2048*1536, 2592*1944
বাহ্যিক মাত্রা: প্রায় 1450*850*1680 মিমি চুল্লি আকার: Φ45 মিমি*350 মিমি
ব্যাসের পরিসীমা: Φ20-40 ভিতরের আকার: 500×500×600mm
ঘর্ষণ গতি: 0.32 মি/সেকেন্ড নকশা মানদণ্ড: সিএনএস -11887/11888; পিসিটিএস -7; জিবি/টি 4851
বাইরের মাত্রা: 180 × 270 × 560 (মিমি) ঘোরানো গতি: 60/72 আরপিএম
কাউন্টার: LCD, 0-999,999 প্রদর্শনের পরিসীমা: ± 0.3 ℃ ℃
ফিক্সচার স্পেসিং: 19-75 মিমি 、 57-75 মিমি (al চ্ছিক) পরীক্ষার ব্যাপ্তি: 0.005—300W/(এম*কে)

EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER

EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER 0








PRODUCT DESCRIPTION



The leak burst tester is professionally used to test the comprehensive sealing performance of various soft packages (such as heat-sealed/bonded aseptic packaging, hoses) and bottle caps and bottles. It can quantitatively measure the sealing strength, heat-sealing quality, whole bag bursting pressure, and sealing leakage, analyze the material's compressive and bursting strength, and evaluate the bottle cap's sealing, connection release strength, material stress strength, as well as the bottle's compression resistance, burst resistance, and overall sealing pressure resistance of the hose, achieving all-round reliability verification from edge sealing to connection parts.

DESIGN STANDARD

ASTM F1140, ASTM F2054,ISO 11607-1, ISO 11607-2

TECHNICAL PARAMETERS

Item

Description

Test range

 0.00 ~ 600.00Kpa (standard configuration)

 Air source pressure

0.5MPa ~ 0.7MPa (air source user-provided)

 Air source interface

Φ6 mm polyurethane tube

Dimensions

400 (L) × 400 (W) × 240 (H) mm

Test seat size

280mm (L) × 380mm (W) × 380mm (H)

(can be customized)

Net weight

30kg(Including Test Fixture)



ABOUT US

Haida International Equipment Co,Ltd

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

WHY CHOOSE US?
  • Design & Production : Solution Consultation for each order
  • Recommend the most cost -performance machine
  • Research & Develop the suitable one for Special- designed Model.
  • Shipping & Delivery: One-Stop Service
  • Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
  • 1 year warranty with lifetime technology support
  • After-Sale Service
  • React within 2 Hours
  • Video inspection & on-site service combined
FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
