High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center

High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center
High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center

বড় ইমেজ :  High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center

পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: Haida
সাক্ষ্যদান: CE,,ISO
Model Number: 60085-HD
প্রদান:
Minimum Order Quantity: 1
মূল্য: আলোচনাযোগ্য
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 Sets per Month

High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center

বিবরণ
ব্যবহার: মান নিয়ন্ত্রণ এবং পরীক্ষা ট্রান্সফর্মার ক্ষমতা: 1000va
প্রভাব গতি: 3.4 মি/সে রানওয়ে: দৈর্ঘ্য 100 মিমি
বাহ্যিক আকার: 900*500*800 (ডাব্লু*ডি*এইচ) প্রভাব কোণ: 90 ডিগ্রি
তাপমাত্রা পরীক্ষক: রুম তাপমাত্রা 200 ° সে মাত্রা: 650 মিমি × 400 × 830 মিমি
সময়সীমা: 3 মিনিট (নির্বিচারে সেট করা যায়) বর্তমান পরিমাপ পরিসীমা: 10pa ~ 1ma
ফিক্সচার লোড: 2.5N ওজোন উত্পাদিত মোড: ওজোন জেনারেটর বা UV শোষণ পদ্ধতি
অনুভূমিক: 500 মিমি * 250 মিমি * 500 মি নমুনা বেধের পরিসীমা: 0 ~ 60 মিমি
নমুনার আকার: 16 মিমি, 6-15 মিমি (ডি) পর্যবেক্ষক: সিআইই 10 ° স্ট্যান্ডার্ড পর্যবেক্ষক
স্পেসিফিকেশন: 20-88HRA, 20-100HRB, 20-70HRC চাপ রেজল্যুশন: 0.001 এমপিএ (0.01 বার বা 1PSI)
পরীক্ষার মোড A: ঘরের তাপমাত্রা ডিসপ্যালি: ডিজিটাল
পরীক্ষার গতি: সামঞ্জস্যযোগ্য বলের ওজন: 5 কেজি
বাহ্যিক মাত্রা: 95x150x105 সেমি পাঞ্চিং স্ট্রোক: 25 মিমি
তাপমাত্রা অভিন্নতা: ± 2 ℃ ℃ নির্ভুলতা নিয়ন্ত্রণ করা: ±0.2°C
বিশেষভাবে তুলে ধরা:

Thermal Conductivity Rubber Plastic Tester

,

research Rubber Plastic Tester

,

High Precision Rubber Plastic Tester

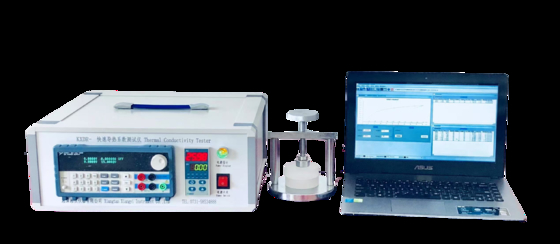

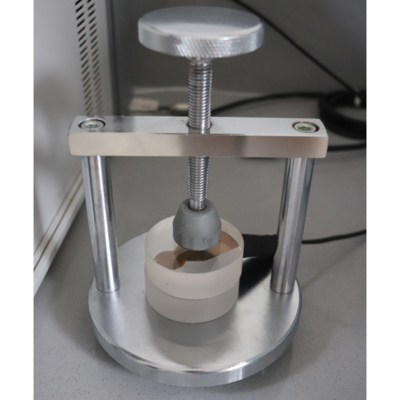

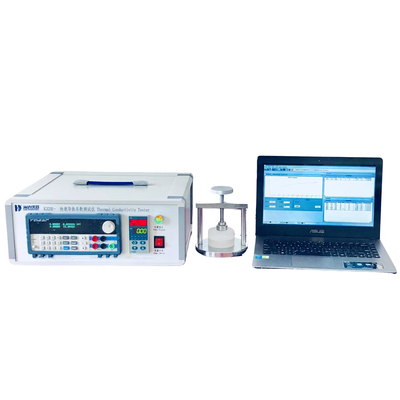

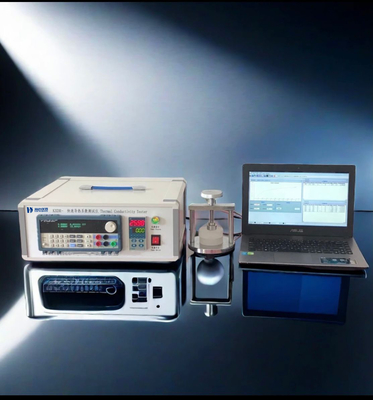

HD-KDRX-II Thermal Conductivity Tester

(Hot Wire Method)



Description:

The hot wire thermal conductivity tester (transient method) is measured using the line source test method of the thermal probe. This thermal probe has a very large aspect ratio to achieve the simulation conditions of an infinitely long and infinitely thin heat source. It is easy to use, with a plug-and-play probe sensor quick interface and simple software interface operation, allowing users to quickly master and accurately operate. From the beginning of preparation for the test to obtaining the results, it usually takes only 1~2 minutes. It has the advantages of a wide range of applications, fast measurement speed, and accurate measurement results. It has the advantages of small size, easy to carry, and higher cost performance to meet the production, quality inspection, and R&D needs of related industries.



High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center 0

Technical Parameters

Item Parameters
Thermal conductivity range 0.0001~50 W/mK; resolution: 0.0001w/mk
Measurement relative error ≤3%
Repeatability error ≤3%
Temperature resolution 0.01℃
Measuring time 2~180 seconds
Sample test temperature range

Room temperature

(Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements)

Tested samples Plastic, soil, soft rock, liquid; paste, granule, powder and other materials
Sample shape Block, flake, paste, powder, granule, colloid, liquid (round, square, irregular shape, no restrictions on shape), only a relatively flat sample surface is required
Sample size

Cylindrical samples, ≥φ30 mm;

Square samples, 30*30mm;

Irregular samples, thickness ≥1mm

Control mode By computer and software
Machine dimension (L*W*H)380*400*165mm
Machine weight Approx. 5KG
Power AC 220V±10%, 50/60 Hz, 200W



About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center 1High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center 2High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center 3




Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined





FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.





Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.





Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.


Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
