Battery Capacity Voltage Discharge Resistant Tester Energy Efficiency

Designed for digital TV testing, this product generates test signals for CVBS, YPbPr, SDI, HDMI, and RF antenna interfaces to meet the testing requirements of major TV interfaces.

• TV energy efficiency testing

• TV display performance testing

• Other TV-related testing items

1. Video Baseband Signal

   • Supports four interface types: CVBS, YPbPr, SDI, and HDMI

   • Compatible with PAL and NTSC standard-definition video formats

   • Supports HD formats: 1920×1080 50i/50p/60i/60p

   • Supports 4K UHD formats: 3840×2160 25p/30p/50p/60p

2. Analog TV Modulation Signal

   • TV standard: PAL-DK

   • Output impedance: 75 ohms

   • Frequency range: 47–862 MHz

   • Level range: Main output: 100–120 dBμV; Sub output: 70–90 dBμV

3. Digital TV Modulation Signal

   • TV standards: DTMB, DVB-C, DVB-T, etc.

   • Output impedance: 50 ohms

   • Frequency range: 32–2196 MHz

   • Level range: -60–0 dBm

   • Modulation error ratio: >36 dB

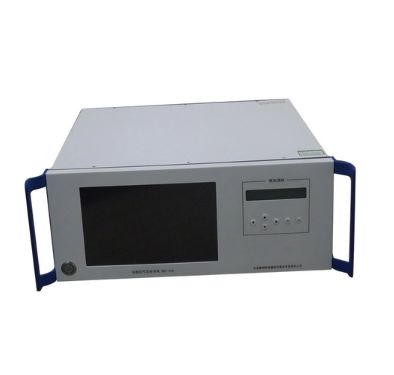

1. Analog TV modulation module display

2. Control buttons (up/down/left/right/ENTER/EXIT)

3. Touchscreen system display

4. Thin-film keypad

5. Brand logo

6. USB interface

7. Power key

1. Video in and Audio in

2. RF-ATV output (with 30 dB attenuation)

3. Y/CVBS, Pb, Pr outputs

4. L/R analog audio and AES/EBU digital audio outputs

5. SDI and HDMI digital video outputs

6. RF-DTV digital RF output

7. System peripheral interface

8. Power interface and switch

• TV energy efficiency testing

• Set-top box testing

• Monitor testing

BNC cables, adapters, DP-HDMI converters

TV test equipment, AV test equipment, TV signal tester
