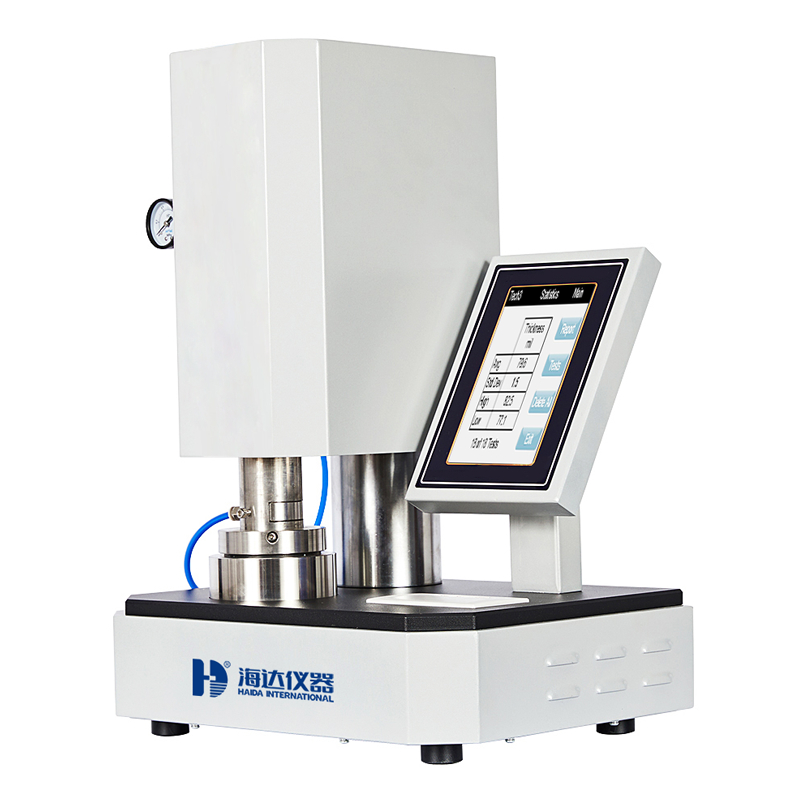

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)
EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

বড় ইমেজ :  EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

পণ্যের বিবরণ:
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: Haida
সাক্ষ্যদান: CE,,ISO
মডেল নম্বার: 5095-এইচডি
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1
মূল্য: আলোচনাযোগ্য
প্যাকেজিং বিবরণ: প্রতিটি সেট রজন ফাইবার এবং পিপি ফিল্ম দিয়ে সুরক্ষিত, তারপরে অপারেশন ম্যানের সাথে শক্তিশালী কাঠের কে
ডেলিভারি সময়: অর্ডার নিশ্চিত হওয়ার 20 দিন পরে
পরিশোধের শর্ত: এল/সি, টি/টি, ডি/এ, ডি/পি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম
যোগানের ক্ষমতা: প্রতি মাসে 300 সেট

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

বিবরণ
কার্যকর কর্মক্ষেত্রের আকার: 280*170*120 মিমি তাপমাত্রা নির্ভুলতা: ± 0.2 ℃
পেন্ডুলাম কোণ: 150° ক্ষমতা: 1-1.5,2-2.5/3-3.5T/ঘন্টা
সন্নিবেশ বাহিনী: 0~50 কেজি টাইমিং মোড: পাল্টা আপ, কাউন্টার-ডাউন
নকশা মান: এইচএস 80 ± 5 পরীক্ষার গতি: 5 ~ 60 চক্র/মিনিট
প্রভাব কোণ: 90 ডিগ্রি পেন্ডুলামের দৈর্ঘ্য: 200 মিমি
ডেটা নিষ্পত্তি: সিপিইউ পিলিং কোণ: 90 °
মাথা ধারালো পরিমাপ: 35 °, 30 ° চুল্লি আকার: Φ45 মিমি*350 মিমি

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 0

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 1



DESCRIPTION

Thickness tester is used for thickness determination of film.

DESIGN STANDATD

GB/T 6672,ISO 4593

PRODUCT FEATURES

1. One-click test, easy to operate.

2. Cotex-M4 processor, improve the response speed of the instrument, accurate and fast calculation.

3. Automatic measurement, statistics, print test results, and has a data saving function

TECHNICAL PARAMETERS

Item

Description

Display

7-inch touch screen display

Measure range

(0~2)mm

Resolution

0.0001mm

Indication error

±1um

Repeatability

±1um

Measuring parallelism

0.002mm

Contact area

50 mm2

Contact pressure

film (17.5 ± 1) kPa

Probe descent rate

0.5~10mm/s(adjustable)

Data storage

50 times test data

Result Output

USB flash drive data export

Print

Thermal printer

l Communication interface

USB, WIFI(2.4G)

Dimension

365x255x440 mm(L*W*H)

Net weight

27Kg




Haida International Equipment Co,Ltd

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 2 EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 3 EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 4
WHY CHOOSE US?
  • Design & Production : Solution Consultation for each order
  • Recommend the most cost -performance machine
  • Research & Develop the suitable one for Special- designed Model.
  • Shipping & Delivery: One-Stop Service
  • Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
  • 1 year warranty with lifetime technology support
  • After-Sale Service
  • React within 2 Hours
  • Video inspection & on-site service combined
FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
