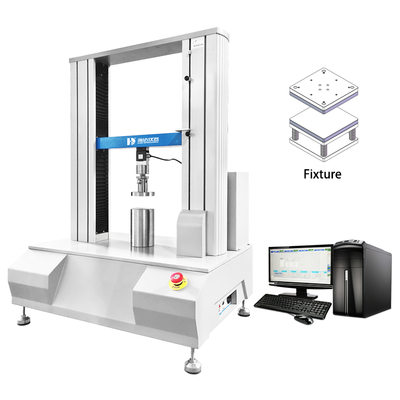

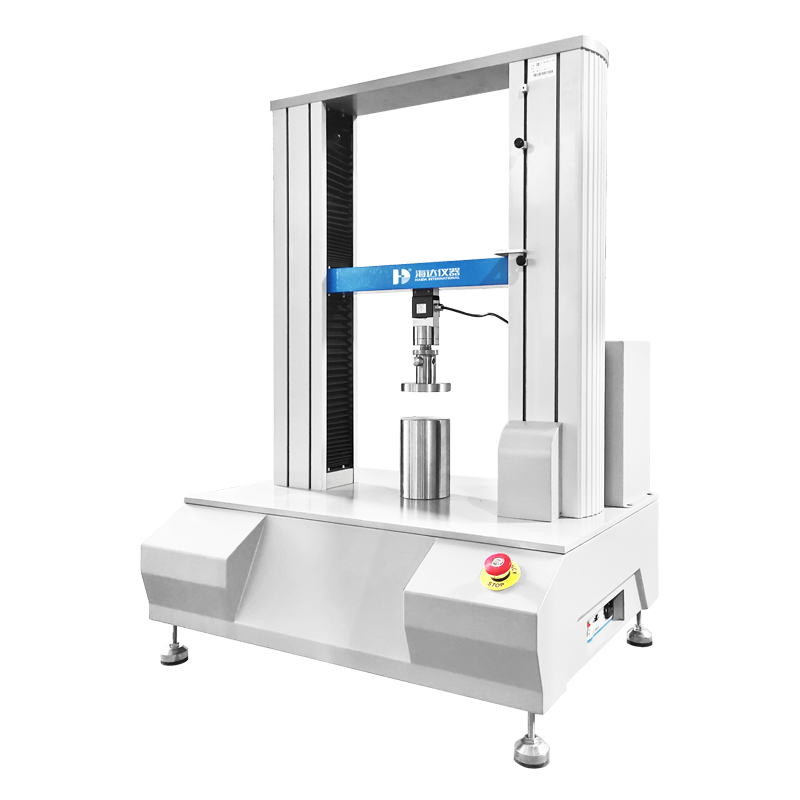

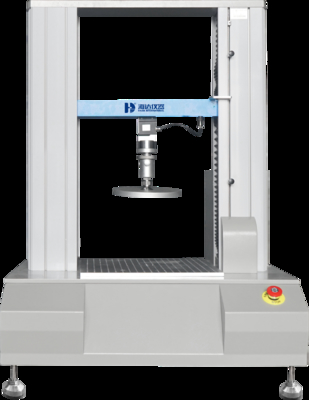

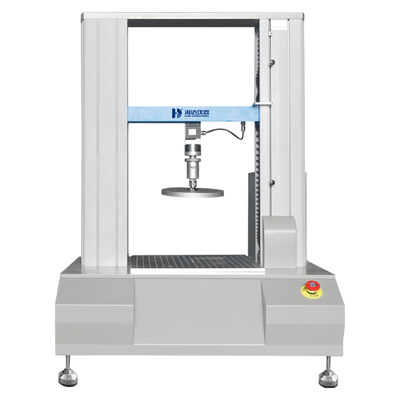

HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity
HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

বড় ইমেজ :  HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: Haida
সাক্ষ্যদান: CE、ISO
Model Number: HD-A513-C
প্রদান:
Minimum Order Quantity: 1 set
মূল্য: আলোচনাযোগ্য
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 300 Sets per Month

HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

বিবরণ
ফাংশন: সংক্ষেপণ পরীক্ষা, কাগজ টিউব কম্প্রেসিভ শক্তি পরীক্ষা, বার্স্ট পরীক্ষক, টেনসিল পরীক্ষা, কাগজ পরীক্ষার নাম: পেপার কাপ টিউব সংবেদনশীল শক্তি পরীক্ষক, কাগজ পরীক্ষার উপকরণ কাগজ জিএসএম পরীক্ষক/ বিস্ফোরণ শক্তি পরীক
প্রদর্শন: এলসিডি, ডিজিটাল ডিসপ্লে বৈশিষ্ট্য: পরিচালনা করা সহজ
অপারেশন পদ্ধতি: স্বয়ংক্রিয় পণ্যের ধরণ: পরীক্ষার যন্ত্র
সুরক্ষা ডিভাইস: আনয়ন প্রকার সুরক্ষা ডিভাইস নিয়ন্ত্রণ: পিএলসি নিয়ন্ত্রণ
সেন্সিং পদ্ধতি: চাপ ট্রান্সমিটার থামুন: পরীক্ষা বন্ধ করুন
জোর রেজোলিউশন: সর্বোচ্চ পরীক্ষা বাহিনী এফএসের 1/500000 কম্পন মোড: পরস্পর
বিশেষভাবে তুলে ধরা:

Paper Bowl Compression Test Machine

,

500kg Paper Bowl Compression Test Machine

HD-A513-C Paper Bowl Compression Test Machine
Product Overview

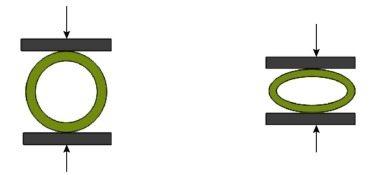

Specialized testing equipment for evaluating the flat compression performance of paper tubes and cores, compliant with GB/T 27591 standards.

Key Features
  • Double-column ball screw drive ensures high-precision and stable operation
  • Force value accuracy better than 1.0 level for precise test data
  • Embedded USB interface or network port for convenient data transmission
  • Adjustable test speed to accommodate various testing requirements
  • PLC control system with automatic operation
  • Pressure transmitter sensing method with 1/500,000 force resolution
Technical Specifications
Capacity 500kg, imported load cell
Load Resolution 1/250,000
Load Precision Within ±0.5%
Motor 400W Panasonic servo motor
Operation Mode PC controlled with software, Windows 10 operation
Test Plate ≥100x100mm
Test Speed 12.5±2.5 mm/min (0.1-500mm/min adjustable)
Max. Stroke 600mm (excluding fixture)
Test Units gf/kgf/N/kN/lbf/T
Dimensions 790 x 610 x 1100mm (LxWxH)
Weight Approx. 170 kg
Power 1∮, 220V, 500W
General Specifications
Packaging Dimensions 1240 x 840 x 1320mm (WxDxH)
Power Supply Single-phase, 220V±10%, 50/60Hz (customizable)
Gross Weight 180kg
Product Images
HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity 0 HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity 1 HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity 2
