Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification

Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification
Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification

বড় ইমেজ :  Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification

পণ্যের বিবরণ:
Place of Origin: Guangdong, China (Mainland)
পরিচিতিমুলক নাম: Haida
সাক্ষ্যদান: ISO,CE
Model Number: 60094-HD
প্রদান:
Minimum Order Quantity: 1 Set
মূল্য: আলোচনাযোগ্য
Packaging Details: Export wooden case
Delivery Time: 15 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 30 Sets per Month Haida

Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification

বিবরণ
Display Device: PC Display Device: PC
All Weight: 2800kg All Weight: 2800kg
Available Tensile Stroke: 900mm Unit Switchover: G, KG, N, LB
Weight: 500 kg Test Speed: 0.1~300mm/min
Usage: Tension Material Tension Strength Tester Resolution: 1/100,000
Test Space Height: 500 mm Crosshead Travel: 1000 mm
Force Reading: kgf, Ibf, N, KN, T etc Load Capacity: 5-200kg
Crosshead Speed Accuracy: ±0.2% Grip: Tensile grip, Tear force grip
Dimensions: 1200 mm x 800 mm x 1800 mm Safety Features: Emergency Stop Button, Overload Protection
Deformation Measuring: YYU–10/50 Power: 1∮, AC220V, 50HZ
Gross Weight: 1400kg Screw: High Precise Ball Screw
Test Area Material: SUS304 stainless steel Use: universal tensile testing machine 10kn
Operation Control: Hydraulic Load Cell Resolution: 1/250,000
Horizontal Test Space: ≤400mm Certifications: ISO, CE
Transducer: load cell
বিশেষভাবে তুলে ধরা:

10kN Hydraulic Ceramic Bending Tester

,

Precise Ceramic Bending Tester

,

Ceramic Bending Tester

60094-HD MOR Machine/Ceramic Bending Tester
Key Features
  • Hydraulic operation control with emergency stop button and overload protection
  • High precision ball screw mechanism for accurate testing
  • SUS304 stainless steel test area material for durability
  • PC display device with load cell resolution of 1/250,000
  • Meets GB/T3810.4-2016 and ISO10545-4:2014 ceramic tile testing standards
  • Multiple grip options including tensile grip and tear force grip
Technical Specifications
Attribute Value
Unit Switchover G, KG, N, LB
Safety Features Emergency Stop Button, Overload Protection
Grip Options Tensile grip, Tear force grip
Deformation Measuring YYU–10/50
Display Device PC
Power 1∮, AC220V, 50HZ
Gross Weight 1400kg
Screw Type High Precise Ball Screw
Test Area Material SUS304 stainless steel
Certifications ISO, CE
Performance Details
Max Loading Capacity: 10000N
Loading Speed: 5~700N/S (adjustable)
Measurement Accuracy: 0.5%
Horizontal Test Space: ≤400mm
Power Consumption: 0.2KW
Tile Size Compatibility
  • Standard: 100×100mm to 1000×1000mm (three specifications available)
  • Customizable up to 1200×1200mm upon request
Applications

This universal tensile testing machine is designed for MOR testing of ceramic pipes, glaze tiles, sanitary ware, electric ceramics, and fire-resistance materials. With fixture replacement, it can also perform burst resistance testing and measure flexural/compressive strength of various ceramic products.

Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification 0

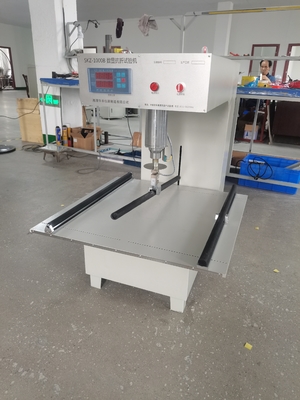

Ceramic Tester Detail View
Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification 1

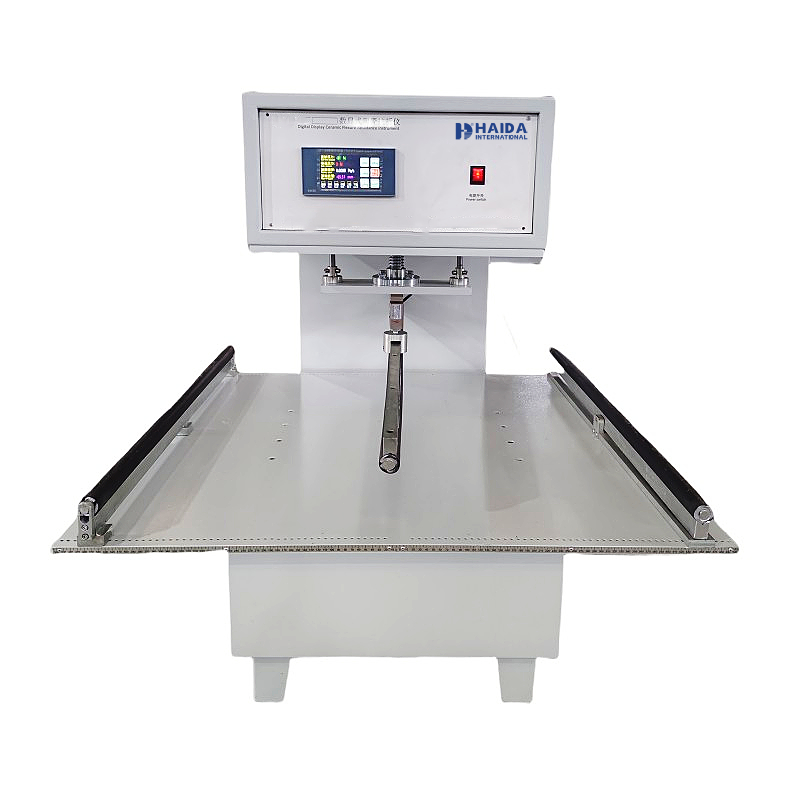

Ceramic Tester Operation View
Control System Features
  • Touch screen microcomputer control with intuitive interface
  • Real-time display of instantaneous pressure and peak pressure
  • Digital loading speed display and adjustment
  • Automatic calculation of destructive strength and fracture modulus
  • Sample size input and parameter setting interface
  • Built-in calibration functions
