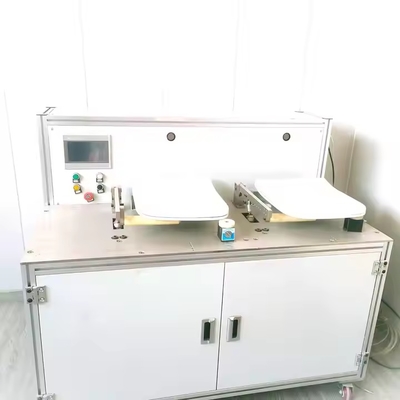

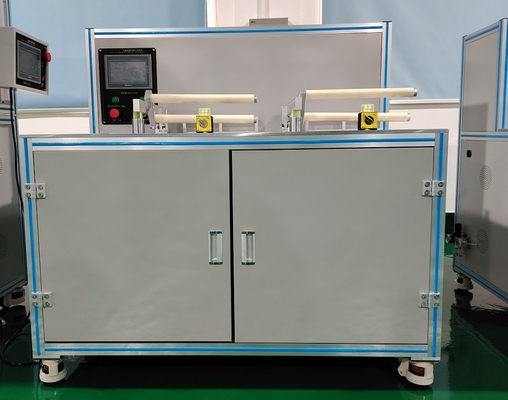

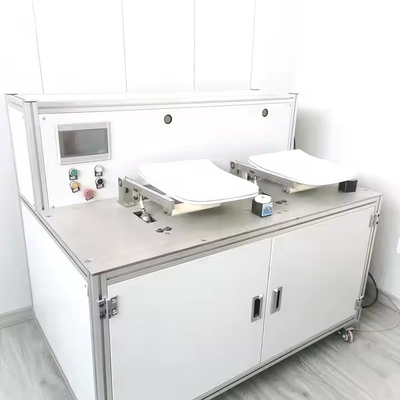

5066-HD Anti-Siphon Test Machine for Cookware Valves

5066-HD Anti-Siphon Test Machine for Cookware Valves
5066-HD Anti-Siphon Test Machine for Cookware Valves 5066-HD Anti-Siphon Test Machine for Cookware Valves 5066-HD Anti-Siphon Test Machine for Cookware Valves

বড় ইমেজ :  5066-HD Anti-Siphon Test Machine for Cookware Valves

পণ্যের বিবরণ:
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: Haida
সাক্ষ্যদান: ISO
মডেল নম্বার: 5066-এইচডি
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1 সেট
মূল্য: আলোচনাযোগ্য
প্যাকেজিং বিবরণ: প্রতিটি সেট রজন ফাইবার এবং পিপি ফিল্ম দিয়ে সুরক্ষিত, তারপর অপারেশন ম্যান দিয়ে শক্ত কাঠের কেসে রাখু
ডেলিভারি সময়: অর্ডার নিশ্চিত হওয়ার 20 দিন পর
পরিশোধের শর্ত: এল/সি, ডি/এ, ডি/পি, টি/টি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম, নগদ, এসক্রোতে
যোগানের ক্ষমতা: প্রতি মাসে 30 সেট

5066-HD Anti-Siphon Test Machine for Cookware Valves

বিবরণ
জলের তাপমাত্রা বজায় রাখা: 60±2℃ ট্যাংক বডি মাটিরাল: প্রতি মিনিটে 2~5 চক্র
মেশিনের আকার: 1350 মিমি * 1050 মিমি * 2550 মিমি মোট ওজন: 210 কেজি
তাপের উৎস: সিরামিক হিটার টাচ স্ক্রিন: এলসিডি
বিশেষভাবে তুলে ধরা:

Cookware Valves Anti-Siphon Test Machine

,

Anti-Siphon Test Machine

5066-HD Anti-Siphon Performance Test Machine
Product Specifications
Attribute Value
Water temperature maintain 60±2℃
Tank body material 2~5 cycles per minute
Machine Size 1350mm*1050mm*2550mm
Gross Weight 210KG
Heat source Ceramic heater
Touch screen LCD
Applications & Test Purpose

This equipment is dedicated to testing the anti-siphon performance of water inlet valves. It features a transparent container between the sample and vacuum machine to collect water flow during failed siphon tests, protecting the vacuum machine from damage. The vacuum system simulates vacuum states in water supply pipelines to detect siphon phenomena in water inlet valves.

Compliance Standard

ASME A112.18.1-2018 CSA B125.1-18(C) 5.9

Standard Features
Feature Specification
Number of Workstations Single workstation
Test Pressure 0 ~0.1 PA (adjustable), 0.5% full scale accuracy
Pressure Adjustment Manual control
Observation Tube ID 13 mm
Immersion Depth 13 mm
Vacuum Generation Vacuum pump
Test Fixtures Customized per specification (≥2 pcs each)
Timer Range 0-99.99 (Hours, Minutes, seconds)
Dimensions 1000x1000x1600 mm
Power supply AC220V 50HZ
Weight Approx. 120 kg
About Haida International Equipment Co., Ltd

Established in 2004 and located in Dongguan city, Guangdong Province, China, Haida specializes in production and R&D of various material physical properties testing equipment. We have our own independent R&D center and four testing equipment production lines: textile, footwear, leather, and mask. Our testing equipment entered the international market in 2006.

5066-HD Anti-Siphon Test Machine for Cookware Valves 0
5066-HD Anti-Siphon Test Machine for Cookware Valves 1
5066-HD Anti-Siphon Test Machine for Cookware Valves 2
5066-HD Anti-Siphon Test Machine for Cookware Valves 3
5066-HD Anti-Siphon Test Machine for Cookware Valves 4
5066-HD Anti-Siphon Test Machine for Cookware Valves 5
Why Choose Haida?
  • Design & Production: Solution consultation for each order, recommending the most cost-performance machine, with R&D for special-designed models.
  • Shipping & Delivery: One-stop service from production to delivery, including installation, training, and technical support.
  • Warranty: 1 year warranty with lifetime technology support.
  • After-Sale Service: Quick response within 2 hours, with video inspection and on-site service options.
Frequently Asked Questions
Q: How about your warranty?
A: We offer a one-year warranty with technical support and parts replacement. Our engineers may provide on-site service if necessary.
Q: What is the order process?
A: Process includes inquiry, quotation, requirements confirmation, payment, production, testing, packing, documentation, delivery, and after-sales service.
Q: Can we visit your factory before order?
A: Yes, we welcome factory visits and can assist with hotel arrangements and airport pickup.
Q: Do you accept customization service?
A: Yes, we offer both standard and customized machines tailored to your specific requirements.
