Paper Cup Tube Compressive Strength Tester with Digital Display

Paper Cup Tube Compressive Strength Tester with Digital Display
Paper Cup Tube Compressive Strength Tester with Digital Display Paper Cup Tube Compressive Strength Tester with Digital Display

বড় ইমেজ :  Paper Cup Tube Compressive Strength Tester with Digital Display

পণ্যের বিবরণ:
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: Haida
সাক্ষ্যদান: CE、ISO
মডেল নম্বার: 5099-এইচডি
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1 সেট
মূল্য: আলোচনাযোগ্য
প্যাকেজিং বিবরণ: প্রতিটি সেট রজন ফাইবার এবং পিপি ফিল্ম দিয়ে সুরক্ষিত, তারপর অপারেশন ম্যান দিয়ে শক্ত কাঠের কেসে রাখু
ডেলিভারি সময়: অর্ডার নিশ্চিত হওয়ার 20 দিন পর
পরিশোধের শর্ত: এল/সি, ডি/এ, ডি/পি, টি/টি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম
যোগানের ক্ষমতা: প্রতি মাসে 300 সেট

Paper Cup Tube Compressive Strength Tester with Digital Display

বিবরণ
ফাংশন: সংক্ষেপণ পরীক্ষা, কাগজ টিউব কম্প্রেসিভ শক্তি পরীক্ষা, বার্স্ট পরীক্ষক, টেনসিল পরীক্ষা, কাগজ পরীক্ষার নাম: পেপার কাপ টিউব সংবেদনশীল শক্তি পরীক্ষক, কাগজ পরীক্ষার উপকরণ কাগজ জিএসএম পরীক্ষক/ বিস্ফোরণ শক্তি পরীক
প্রদর্শন: এলসিডি, ডিজিটাল ডিসপ্লে ইউনিট সুইচ: কেজিএফ, এন। (al চ্ছিক), এলবিএফ
প্রদর্শন মোড: এলসিডি ডিসপ্লে, ডিজিটাল মোড কম্পন মোড: পারস্পরিক
চলাচল ড্রাইভ: বল স্ক্রু এবং সার্ভো মোটর কাস্টমাইজড সমর্থন: ওএম ওডিএম
ব্যবহার: কাগজ পরীক্ষার যন্ত্র বৈশিষ্ট্য: উচ্চ নির্ভুলতা, সহজ অপারেশন, নির্ভরযোগ্য পারফরম্যান্স
নিয়ামক: পিএলসি (প্রোগ্রামযোগ্য লজিক কন্ট্রোলার) ড্রপ পরীক্ষা: কোণ, প্রান্ত, নমুনার মুখ
প্রদর্শন পদ্ধতি: ডিজিটাল প্রদর্শন সময় প্রদর্শন: পরীক্ষার সময় সময় প্রদর্শন করতে (গুলি)
ইউএসএ অঞ্চল: রান্নার পাত্র নকশা মানদণ্ড: EN71 ANSI, UL, ASTM ISTA
নিয়ন্ত্রণ ব্যবস্থা: পিএলসি প্রোগ্রামড কন্ট্রোল উত্স: চীন
পরীক্ষণ পদ্ধতি: বৈদ্যুতিন, যান্ত্রিক, ম্যানুয়াল ওজন: কাস্টমাইজযোগ্য
ট্রান্সমিশন মোড: বায়ুসংক্রান্ত ডিভাইস + রিডুসার + রিলিজ স্ক্যান মোড: একক লাইন
ব্যবহার: প্যাকেজিং সামগ্রী
বিশেষভাবে তুলে ধরা:

Tube Compressive Strength Tester

,

Digital Display Compressive Strength Tester

,

Paper Cup Tube Compressive Strength Tester

5099-HD Oxygen Transmission Rate Tester

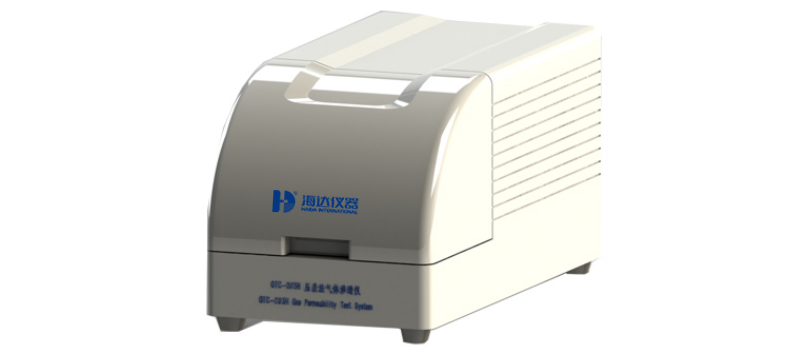

Product Overview
This advanced oxygen transmission rate tester utilizes coulometric oxygen analysis sensors and isobaric test principles to provide high-efficiency oxygen permeability testing for materials with varying gas barrier properties. The system offers precise temperature, humidity, and flow rate control with exceptional test sensitivity and repeatability.
Key Attributes
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display LCD, Digital display with unit switching (Kgf, N, Lbf)
Control System PLC (Programmable Logic Controller)
Movement Drive Ball screw and servo motor
Vibration Mode Reciprocating
Design Standards EN71, ANSI, UL, ASTM, ISTA
Test Methods Electronic, mechanical, manual
Transmission Mode Pneumatic device + reducer + release
Technical Features
  • Three independent test chambers for simultaneous testing of different samples
  • Imported high-precision sensors ensure exceptional test accuracy
  • Advanced water bath temperature control system with wide temperature range
  • Independent control of upper/lower chambers and sensors for result accuracy
  • Sealed pipeline system reduces system errors for more precise results
  • Anti-leakage sample structure design for stable sealing
  • Multiple test modes (manual, proportional, cyclic) for various scenarios
  • Expandable USB interfaces and network ports for data access
  • Self-detection capabilities ensure continuous operational status
  • Power-off automatic save function prevents data loss
Technical Specifications
Measuring Range Film: 0.01-200cm³/m²*24h (conventional)
Container: 0.00025-1 cm³/pkg*24h (optional)
Resolution 0.001 cm³/m²•24h
Temperature Control 5°C to 85°C (±0.1°C accuracy)
Humidity Control 0% RH, 5%-90%RH, 100%RH (±1%RH accuracy)
Sample Capacity 1-3 pieces (independent data)
Transmission Area 50 cm²
Max Sample Thickness ≤3mm
Carrier Gas 99.999% high purity nitrogen (user-provided)
Dimensions 740mm (L) × 415mm (W) × 430mm (H)
Weight 50Kg
Power Supply AC 220V 50Hz
Compliance Standards
GB/T 19789, ISO 15105-2, ASTM D3985, ASTM F2622, ASTM F1927, JIS K7126-2, YBB 00082003
Applications
Ideal for oxygen permeability testing of films, sheets, paper, and packaging materials in food, pharmaceuticals, medical devices, cosmetics, photovoltaic electronics, and related industries.
Product Images
Paper Cup Tube Compressive Strength Tester with Digital Display 0 Paper Cup Tube Compressive Strength Tester with Digital Display 1 Paper Cup Tube Compressive Strength Tester with Digital Display 2
About Haida
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
