Accurate Bottle Axis Deviation Tester For Verticality Measurement

• Precision measurement of bottle container vertical deviation
• Essential for quality control in food, cosmetics, and pharmaceutical industries
• Four-claw self-centering chuck with high concentricity
• Adjustable height and orientation for various bottle types
• Digital LCD display with multiple unit options
• Computer connectivity for data analysis (optional)

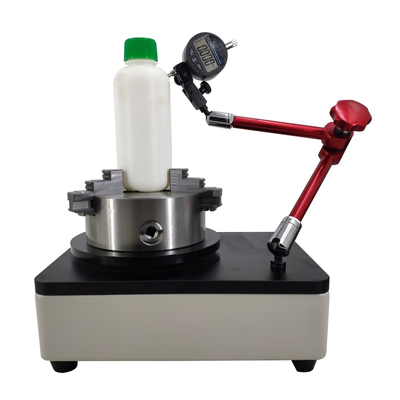

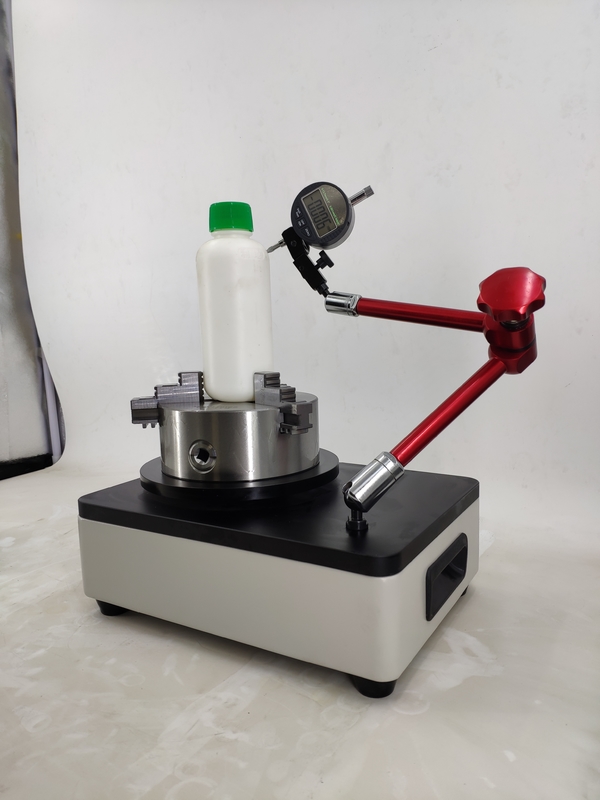

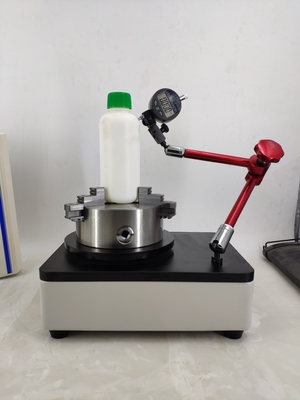

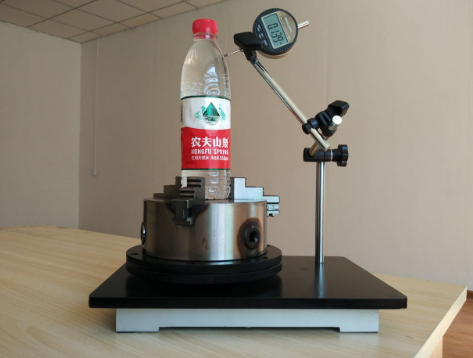

The bottle bottom is fixed on the rotating disk of the horizontal plate, with the bottle mouth contacting the micrometer. Rotating 360° reveals maximum and minimum values, with 1/2 of their difference being the vertical axis deviation value.

• QB2357
• QB/T1868
• YY 0056
• YBB 00012012
• GBT 8452
• GB 2637
• YBB 00332002
• YBB 00042012
• YBB 00052012

Ideal for bottle manufacturers, quality control departments, and research institutions in food, cosmetics, pharmaceutical, and packaging industries.
