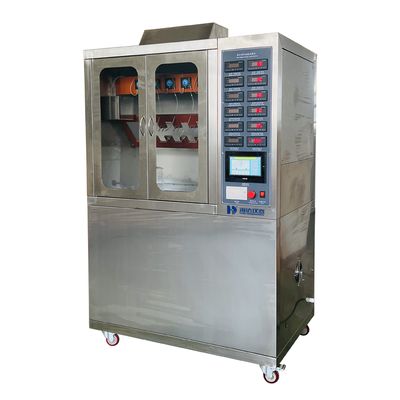

High Voltage Tracking Resistance Test Machine / Glow Wire Test Equipment

High Voltage Tracking Resistance Test Machine / Glow Wire Test Equipment
High Voltage Tracking Resistance Test Machine / Glow Wire Test Equipment

বড় ইমেজ :  High Voltage Tracking Resistance Test Machine / Glow Wire Test Equipment

পণ্যের বিবরণ:
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: Haida
সাক্ষ্যদান: CE,,ISO
মডেল নম্বার: 6007-এইচডি
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1
মূল্য: আলোচনাযোগ্য
প্যাকেজিং বিবরণ: প্রতিটি সেট রজন ফাইবার এবং পিপি ফিল্ম দিয়ে সুরক্ষিত, তারপর অপারেশন ম্যান দিয়ে শক্ত কাঠের কেসে রাখু
ডেলিভারি সময়: অর্ডার নিশ্চিত হওয়ার 20 দিন পর
পরিশোধের শর্ত: এল/সি, টি/টি, ডি/এ, ডি/পি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম
যোগানের ক্ষমতা: প্রতি মাসে 300 সেট

High Voltage Tracking Resistance Test Machine / Glow Wire Test Equipment

বিবরণ
পরীক্ষা চ্যানেল: 5 স্বতন্ত্র পরীক্ষার গ্রুপ ভোল্টেজ স্থায়িত্ব: ±১%
পরীক্ষা ভোল্টেজ পরিসীমা: 100V-6000V (অবিচ্ছিন্নভাবে সামঞ্জস্যযোগ্য) আউটপুট ভোল্টেজ মোড: এসি/ডিসি (স্যুইচেবল)
ভোল্টেজ রেগুলেটর: আউটপুট: 0-250V সামঞ্জস্যযোগ্য; ক্ষমতা: 5 কেভিএ পরীক্ষার সময়কাল: 6 ঘন্টা
ফোঁটা ব্যবধান: সামঞ্জস্যযোগ্য: 0-99.99 সেকেন্ড/মিনিট/ঘন্টা চেম্বারের আয়তন: 900L × 650W × 950H (মিমি); 0.56 m³
পাওয়ার সাপ্লাই: এসি 220 ভি, 50Hz, 1 কেভিএ
বিশেষভাবে তুলে ধরা:

High Voltage Tracking Resistance Test Machine

,

High Voltage Tracking Resistance Test Equipment

,

6000V Tracking Resistance Test Equipment

High Voltage Tracking Resistance Tester

Product Description


This instrument is designed to evaluate the tracking and erosion resistance of electrical/electronic products, household appliances, and their materials. It simulates severe environmental conditions by applying liquid contaminants and inclined samples under power frequency (45Hz-65Hz) to assess the tracking and erosion resistance grades of electrical insulation materials.

Test Standard

The tester strictly complies with GB/T 6553-2014 and IEC 60587:2007 standards.
Product Specifications

Model 6007-HD
Test Channels 5 independent test groups.
Voltage Stability ±1%
Test Voltage Range 100V-6000V (continuously adjustable)
Output Voltage Mode AC/DC (switchable)
Voltage Regulator Output: 0-250V adjustable; Capacity: 5kVA
Test Transformer Capacity: 5kVA; Max. output voltage: AC 6000V
High-Precision Stabilizer Output: AC 220V; Power: 6000W; Accuracy: ±1%
Electrodes Material: 304 stainless steel, thickness: 0.5mm; Electrode spacing: 50.0mm ±0.1mm
Overcurrent Protection Trips at ≥60mA for 2 seconds, triggering an audible alarm (reset via voltage stop).
Tracking Criteria Per GB/T 6553-2014 Clause 4.1.2: Voltage applied (2.5kV/3.5kV/4.5kV) with contaminant flow; current must remain below 60mA for 6 hours to pass.
Test Duration 6 hours.
Droplet Interval Adjustable: 0-99.99 seconds/minutes/hours
Droplet System High-precision peristaltic pump (LEAF); Flow rate: 0.00185-20 mL/min; Speed: 0.1-50 rpm; Accuracy: <0.5%.
Test Solution Mixture of ammonium chloride, isooctylphenoxy polyethoxy ethanol (nonionic wetting agent), and deionized water. Resistivity: (3.95 ±0.05) Ω·m at (23±1)°C
Filter Paper Standard dimensions; Thickness: 0.15-0.17mm
Chassis Material SUS304 stainless steel (brushed finish)
Contaminant Tank 316 stainless steel with sealed design.
Chamber Volume 900L × 650W × 950H (mm); 0.56 m³
Overall Dimensions 1300L × 700W × 1800H (mm)
Control System PLC + touchscreen; Automated report generation; Built-in thermal printer for real-time results.
Design Features Integrated structure with control panel on the right
Glass-view door for observation
Top-mounted exhaust fan for fume extraction post-test
