পণ্যের বিবরণ:
|
নিয়ন্ত্রণ: | পিএলসি + ৫ ইঞ্চি রঙিন টাচস্ক্রিন | বার্নার: | মার্কিন-তৈরি নং 188 সুই (এএসটিএম ডি 4151-2010 §6.3-6.4 অনুগত) |
---|---|---|---|
অটো টাইমিং: | 0.1 এস রেজোলিউশন | ইগনিশন সময়: | 0-99.99s সামঞ্জস্যযোগ্য |
পরীক্ষার মোড: | সময়সীমার ইগনিশন/শিখা প্রভাব | নমুনা ধারক: | ASTM D4151-2010 §6.2 অনুগত |
গ্যাস: | বুটেন (রাসায়নিকভাবে খাঁটি) | মার্কার থ্রেড: | 11.7Tex3 সাদা তুলো |
ওজন: | 30 ± 5 জি | মাত্রা: | 600 × 400 × 370 মিমি |
পাওয়ার সাপ্লাই: | AC 220V, 50HZ | ||
বিশেষভাবে তুলে ধরা: | Blankets Flammability Tester,Blankets Flammability Testing Machine |

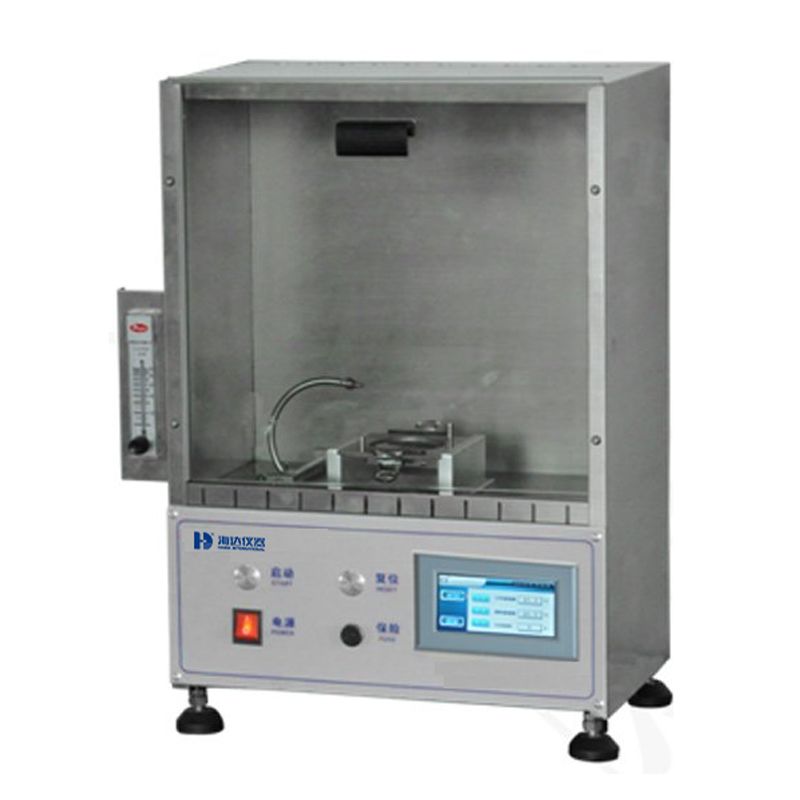

Blanket Flammability Tester evaluates the flame resistance and surface flame spread characteristics of blanket fabrics. The test method involves exposing specimens to a standardized flame for a specified duration, then assessing the burning degree, damage, or discoloration of standard test paper to grade the fabric's performance.
ASTM D4151 Standard Test Method for Flammability of Blankets
Model | 6025-HD |
Control | PLC + 5" color touchscreen |
Burner | US-made No.18 needle (ASTM D4151-2010 §6.3-6.4 compliant) |
ASTM-specified micro gas flow valve (0-50mL/min) | |
Chamber | 520(H)×375(W)×220(D)mm stainless steel, 12ר12.7mm vents, glass window (ASTM D4151-2010 §6.1) |
Auto-timing | 0.1s resolution |
Ignition time | 0-99.99s adjustable |
Test modes | Timed ignition/Flame impact |
Brush device | 0.41mm nylon bristles (20 strands/cluster, 4 clusters/25mm, 19mm length) per ASTM D4151-2010 §6.5 |
Sample holder | ASTM D4151-2010 §6.2 compliant |
4.11 Includes 16mm flame/8mm ignition distance templates | |
Gas | Butane (chemically pure) |
Marker thread | 11.7tex3 white cotton |
Weight | 30±5g |
4.21 Cloud data/control options (as above) | |
Dimensions | 600×400×370mm |
Power | AC220V/50Hz, 50W |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ:
Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
